ESAB MIG Welding Machines

We are Authorized Distributor, Dealer, Supplier of ESAB MIG Welding Machines. We also provide these Welding Machines On Rental / Hire / Hiring Services and our setup is situated in Pune, Maharashtra, India.

ecoHot Heat Pumps

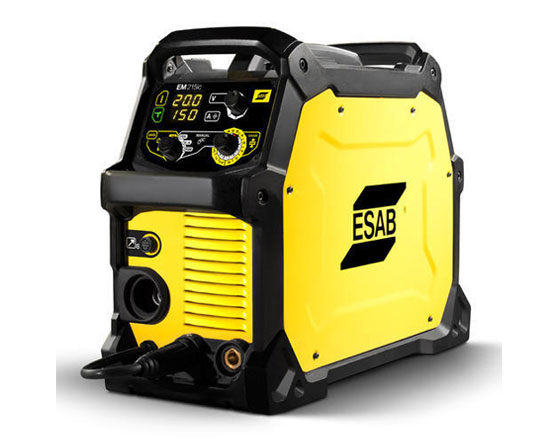

ESAB MIG Welding Machines

ESAB MIG Welding Machines






download-brochure
Brand Esab
Use With Welding Material 9.5 mm (3/8 inch)
Width 9 in. (229 mm)
Frequency 50/60 Hz
Phases 1
VAC 120, 208/230 VAC
Weight 18.2 kg (40 lb)
Max Welding Output 240 A
Open Circuit VDC High 90 VDC
Setting Range MIG/MAG (V) 10-26 V
Voltage Tolerance 95-270 VAC
Enclosure Class IP23S
Cable 2m (6.5ft)
Height 16 in. (406 mm)
Length 23 in. (584 mm)

    Features :-
  • True multi-process performance for best-in-class MIG, Flux-Cored, Stick, including 6010 Stick electrodes, and Lift TIG welding with Rebel EMP 215ic
  • Exclusive sMIG ("smart MIG") feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders.
  • Innovative display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts – all in multiple languages.
  • Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty.
  • Rebel EMP 215ic comes ready-to-weld with professional-grade Tweco Fusion™ MIG gun, electrode holder, earth clamp, TIG torch with accessories and Victor gas regulator.

Output Rating :-

Model Duty Cycle Output Current DC VDC OutC
MIG (GMAW/FCAW) 120V 20 % 130 A 20.5 VDC
MIG (GMAW/FCAW) 230V 25 % 205 A 24.3 VDC
STICK (SMAW) 120V 40 % 90 A 23.6 VDC
STICK (SMAW) 230V 25 % 180 A 27.2 VDC
TIG (GTAW) 120V 40 % 130 A 15.2 VDC
TIG (GTAW) 230V 30 % 180 A 17.2 VDC

Wire Feeder Specifications :-

Max Spool Diameter 4 & 8 in. 100 & 200 mm
Wire Length per Minute 59-476 in./min , 1.5-12.1 m/min
Metal Wire Diameter
Mild Steel .023-.035 in. 0.6-0.9 mm
Stainless Steel .030-.035 in. 0.8-0.9 mm
Aluminum .030-.045 in. 0.8-1.2 mm
flux cored .030-.045 in. 0.8-1.2 mm

Request a quote
